3D Printing and Scanning

What We Offer

Here at Triple R Composites, we offer a full 3D printing and scanning service, including reverse engineering solutions. Whatever your project, we’re sure to be able to help you.

We can help you with the following:

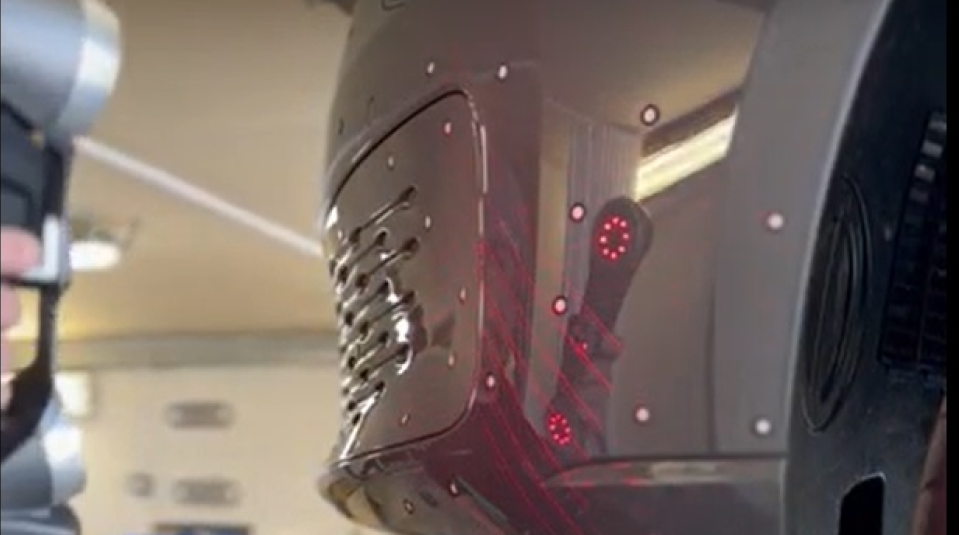

3D scanning service using our Creaform Handy Scan 700. A portable, metrology-grade 3D scanner known for its high accuracy (up to 0.030 mm) and resolution (0.050 mm), capable of scanning objects ranging from 0.1 to 4 meters with a scan area of 275 x 250 mm.


Reverse engineering of scan data providing outputs in .dae, .fbx, .ma, .obj, .stl, .txt, .wrl, .x3d, .zpr, .3mf. Or converting to a CAD surface or model.

We have a selection of 3D Printers, both FDM/FFF and SLS. Able to print in a variety of materials and volumes.

We offer our scanning services from our workshop near Kimbolton, or we can visit you on site (mileage charges apply). Contact us for more details.


    How We Can Help
    ​
    It’s easy to find out what we can do for you. All you need to do is fill out the contact form below, listing your rough project requirements and we can assist you with the pricing, timescales and answering any other questions you have for us.

    Our workshop is based in Tilbrook, Cambridgeshire and we’ve been helping happy customers since 1998. If you’re interested in our fitting service or purchasing our custom styling parts then get in touch with us now.

    CONTACT US

    GET IN TOUCH

    @TRIPLERCOMPOSITES ON INSTAGRAM

    Show us how you are styling your vehicles on Instagram

    FAQS

    Please see below some frequently asked questions regarding our 3D printing and scanning services:

    • What can you scan?

      The simple answer is anything, the surface may need some prep work Eg. using a developer spray on any dark gloss finishes, reflective services or glass. Otherwise it's just a case of positioning our targets and starting the scan.

    • What are the specifications of your scanner?

      Here's a more detailed look at its specifications:

      Key Features and Specifications:

      • Accuracy: Up to 0.030 mm.
      • Resolution: 0.050 mm.
      • Scan Area: 275 x 250 mm.
      • Measurement Rate: 480,000
      • Measurements per second.
      • Light Source: 7 blue laser crosses.
      • Part Size Range: 0.1 to 4 meters.
      • Weight: 0.85 kg (1.9 lbs).
      • Dimensions: 77 x 122 x 294 mm (3.0 x 4.8 x 11.6 in).
      • Volumetric Accuracy: 0.020 ± 0.060 mm/m (can be improved to 0.020 ± 0.015 mm/m with MaxSHOT Next Elite).

      Measurement Capabilities:

      • Pin: 0.100 mm
      • Hole: 1.50 mm
      • Step: 0.30 mm
      • Wall: 0.75 mm
    • What can you 3D print?

      We have 4 3D printers here, A Raise 3D Pro3 Plus (FFF) which can print in a range of materials from prototyping to production end use. With a print volume of 605mm H, 300mm W, 300mm D.

      2 x Sindoh 3DWOX 7X (FDM) with build volumes of 450mm H x 380mm W x 390mm D

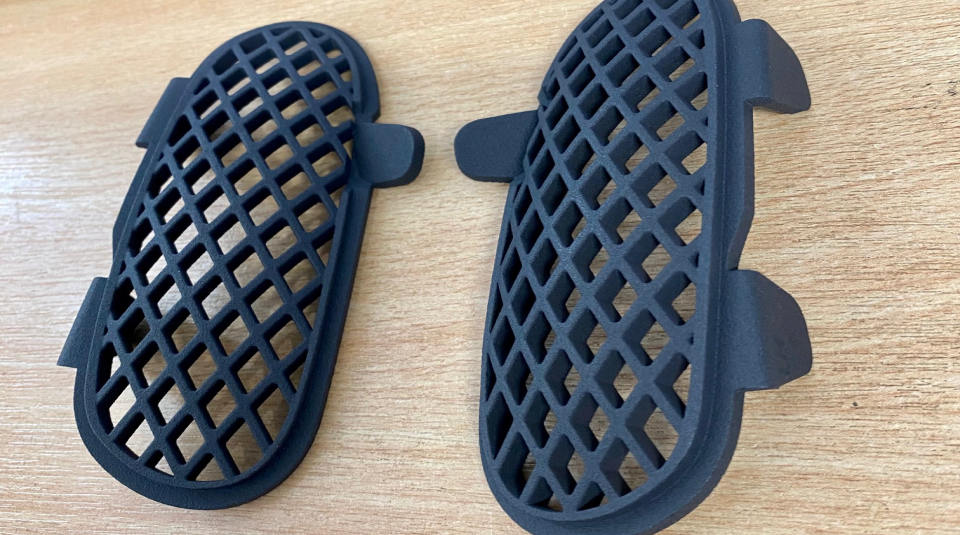

      Along with a Formlabs Fuse 1 (SLS) Printer with a build area of 300mm H, 165mm W, 165mm D. with a 110micron layer resolution. able to print in Nylon 12, Nylon 12 GF and Nylon 11.

    • What do you do if my print doesn't fit in your printer?

      No problem at all, we print lots of parts larger than our printers maximum volumes, we simply slice the part into sections for the print then glue it back together after. If we're using the SLS printer we have some very good 'click' together methods we can add to your design so it can easily be assembled and hold together.
